Description
Vitoli Super Blower E-Series
Super Blower E1B, E1TB, E4D, E4TD, E9D, E9TD, E8TD, and E10TD are characterized by the merits of low noise, large air volume, high wind pressure, small body, light weight and easy installation. This product is widely used for ventilation in various places to conduit wind conveying of low density service media. Also, it is preferred matching product for plastic printing, textile, kitchen utensils, diesel combustion machinery and diesel oil gastification furnance.
Specification
| Model | Specs | Power | Phase | Voltage | Frequency | Wind Pressure |
Blow Rate |
Rotation Speed |
Weight | |||
| inch | mm | W | PH | V | Hz | Pa | min | rpm | kg | |||
| E1B | 2-1/2 | 65 | 250 | 1 | 230 | 50 | 1050 | 8.5 | 2800 | 9 | ||
| E1TB | 2-1/2 | 65 | 250 | 3 | 415 | 50 | 1050 | 8.5 | 2800 | 16 | ||
| E4D | 3 | 75 | 550 | 1 | 230 | 50 | 2000 | 11.5 | 2800 | 45 | ||
| E4TD | 3 | 75 | 550 | 3 | 415 | 50 | 2000 | 11.5 | 2800 | 45 | ||
| E8TD | 5 | 120 | 2200 | 3 | 415 | 50 | 2800 | 28.0 | 280 | 45 | ||
| E9D | 4 | 95 | 1100 | 1 | 230 | 50 | 2300 | 21.6 | 2800 | 29 | ||
| E9TD | 4 | 95 | 1100 | 3 | 415 | 50 | 2300 | 21.6 | 2800 | 29 | ||
| E10TD | 6 | 140 | 4000 | 3 | 415 | 50 | 3280 | 41.6 | 2800 | 58 | ||

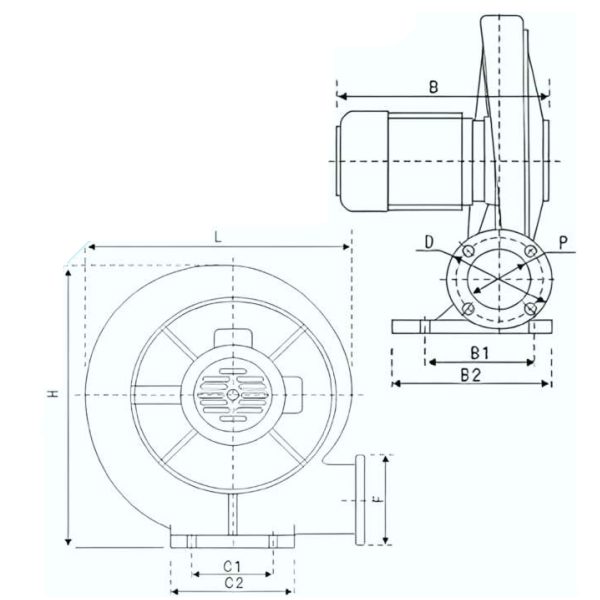

| Model | Power (kW) | Overall Dimension | Air Outlet Flange Size | Base Plate and Anchor Screw Hole Size | |||||||
| L | B0 | H | D | P | F | C1 | C2 | B1 | B2 | ||
| E1B | 250 | 340 | 240 | 365 | 95 | 68 | 118 | 67 | 120 | — | 150 |
| E4D | 550 | 405 | 240 | 435 | 100 | 75 | 125 | 130 | 180 | 125 | 175 |
| E9D | 1100 | 420 | 330 | 460 | 135 | 90 | 155 | 135 | 180 | 170 | 225 |
| E9TD | 1100 | 420 | 360 | 460 | 135 | 90 | 155 | 135 | 180 | 170 | 225 |
| E8TD | 2200 | 480 | 430 | 500 | 160 | 120 | 200 | 160 | 220 | 200 | 265 |
| E10TD | 4000 | 520 | 480 | 600 | 170 | 140 | 210 | 170 | 250 | 240 | 285 |
