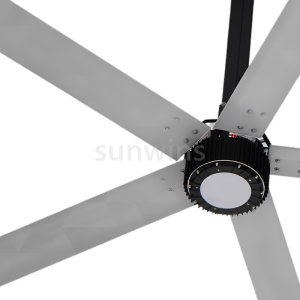

EVEL HVLS Fan WD 6000

Evel products equipped with motoinverter  IME Inside have quality, technology and 100% Made in Italy. Evel HVLS ceiling fan take advantage of efficiency, pacification, electronic brushless motor reliability, and use impeller studied using most powerful fluid dynamics software.

Our product range is wide enough to cover any needs; through our design service, we offer custom made solution for our customers. Our HVLS ceiling fan can change because of diameter, air foil, surface treatment and blades color, direct drive brushless motoinverter and control system.

SKU: SH11008 Category:

Technical specifications

Diameter [meter] 6
Number of Blades 5
Weight installed [Kg] 111,5
Maximum Speed [rpm] 65
Maximum Consumption [Kw]  0,85
Maximum Absorbed Current [A] 2,02
Air flow [m3/h] 402.000
Motor Type Brushless
Inverter Integrated
Minimum Distance from the roof [m] 1,5
Blade Material Aluminum
Blade Design Naca airfoil
Electricity Supply 415V – 50 Hz

Features

Areas of application

Industrial ventilation, distribution center, mall, domestic areas, sport areas, dairy farms.

Evel ceiling fan could be use in a lot of different areas and applications.

Industrial HVLS ceiling fan Evel equipped with IME inside motoinverter : a winning partnership.

Ceiling Fans evel

Evel products are equipped with brushless motoinverter IME, high efficiency level, top quality. IME is a certified company, producing electric and electrical motors since 40 years.



INDUSTRY

Environment: Industrial buildings, factories;

Charateristic: High Roofs, Men and machine at work;

Main air desertification advantages:

Operator wellness and efficiency;

Better machines and equipment working conditions;

Energy saving : during summer time, low cost ventilation, in winter time heating cost reduction given by mixing warm air in the top and cold air at bottom



LOGISTIC

Environment: Logistic center, warehouse;

Characteristic: Wide areas with high rack area, separated by aisle. Operators and logistic machine at work;

Main air desertification advantages:

Operators wellness and efficiency;

Better conditions for goods in deposit;

Energy saving : during summer time, low cost ventilation, in winter time heating cost reduction given by mixing warm air in the top and cold air at bottom.



CONTRACT

Environment: Wide areas like Mall, theatres, conference rooms;

Characteristic: Buildings with several heights, divided on more floors. Possibility to host several exhibitions, musical events, etc;

Main air desertification advantages:

Operator wellness and efficiency;

Visitor wellness;

Energy saving : during summer time, low cost ventilation, in winter time heating cost reduction given by mixing warm air in the top and cold air at bottom.



RESIDENZIAL

Environment: House, offices, show room, loft and open space;

Characteristic: Rooms with several heights, hosts people continuously;

Main air desertification advantages:

Customers wellness;

Energy saving : during summer time, low cost ventilation, in winter time heating cost reduction given by mixing warm air in the top and cold air at bottom



SPORTS CENTER

Environment: Sports area like fitness center, Pala sport;

Characteristic: Wide areas dedicated to sports, individual or by group. Pala sport and big exhibition area enter in this category;

Main air desertification advantages:

Wellness for sportsman and spectators;

Energy saving : during summer time, low cost ventilation, in winter time heating cost reduction given by mixing warm air in the top and cold air at bottom.



ZOOTECNIA

Environment: Farm animals;

Characteristic: Environment studied for animals wellness, in order to increase zoo technics production;

Main air desertification advantages:

Animals wellness;

Wellness for operators working in such environment;

Energy saving : during summer time, low cost ventilation, in winter time heating cost reduction given by mixing warm air in the top and cold air at bottom.



Who is IME?

I.M.E., IndustriaMotori Elettrici S.p.A. is an Italian company, certified ISO 9001:2008, since forty years leader in electric and electronic motors production.

Ime Motor

Why have we selected Brushless Motoinverter BL360 by IME?

For his brushless direct drive technology, allowing to our HVLS ceiling fan a long lasting life, superior to any other solution;

Because it allows to monitor and regulate HVLS ceiling fan functionality, in a very easy way, through a very user friendly interface;

For his very low energy consumption (similar to a lamp);

Because it is really silent in working conditions.





Features;

BLDC MOTORS VS ASYNCHRONOUS MOTORS

Comparing with traditional brushed type motors, BLDC motors have the following Comparing with traditional brushed type motors

  • Longer Life – 2 to 3 times longer than asynchronous motors
  • No Maintenance – No carbon brushes to be changed, no gear boxes
  • Cleaner – No dust residues
  • Quieter – No electronic and frictional noise
  • No Arcing (Spark-free) – Safe and less radio interference
  • More Efficient = Energy Saving – No brush friction, so power consumed is 30% less than asynchronous motors, based on the same output
  • Very High Reliability – No commentator or brushes to wear out
  • Better Performance – Precise motor control due to integrated inverter which allows you to control speed by single RPM
  • Produce Less heat
